BREAKING BARRIERS: HOW AUTOMATION ELEVATED PVC WALL PANEL PRODUCTION TO NEW HEIGHTS

Overview:
PVC wall panels are becoming increasingly popular for their durability, water resistance, and low maintenance, making them ideal for homes, offices, and commercial spaces. One of our clients, a leading manufacturer of PVC wall panels, was facing growing challenges in scaling their production. With demand surging, they needed a solution that could drastically boost their output without compromising on quality. Our **Automated PVC Mixing, Weighing, and Conveying System** offered exactly what they needed to revolutionize their business.

Challenges:
Before automation, the client encountered multiple bottlenecks in their production process:

• Inconsistent Material Quality: The client's outdated PVC mixer was unable to blend PVC resin, stabilizers, and additives uniformly, leading to significant variations in the thickness, strength, and finish of their wall panels. These inconsistencies resulted in higher product rejection rates and customer dissatisfaction.
• Slow Production Speeds: The manual handling of raw materials—particularly PVC powder and minor ingredients—slowed down production. The outdated system couldn’t keep up with rising demand, particularly for bulk orders.
• High Operational Costs: With manual labor required for ingredient batching and handling, labor costs were high, and there was considerable downtime between production cycles, causing inefficiencies.

Our Solution:
To address these issues, we installed an integrated **PVC Mixing, Weighing, and Conveying System** tailored to the client’s unique production needs.

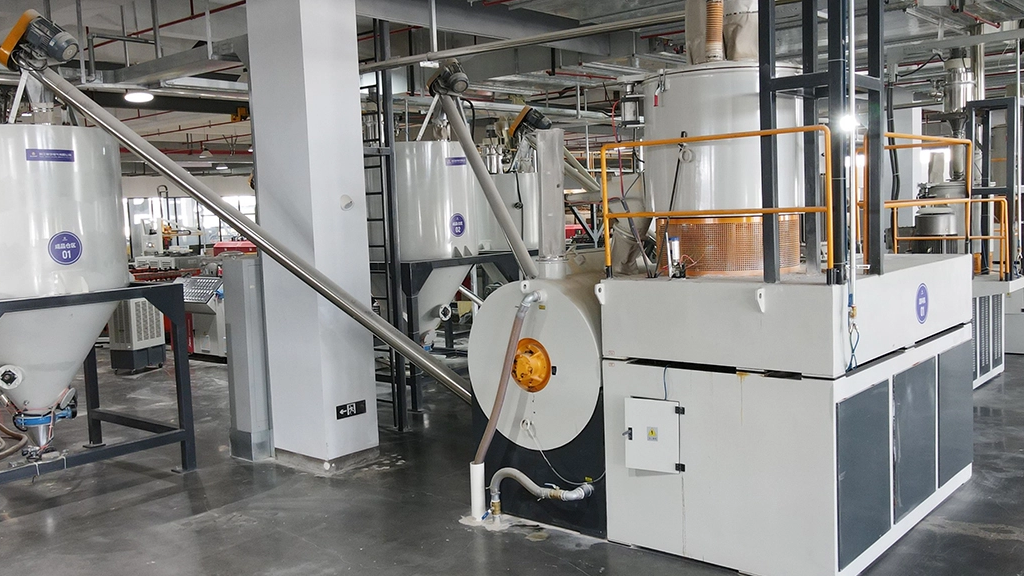

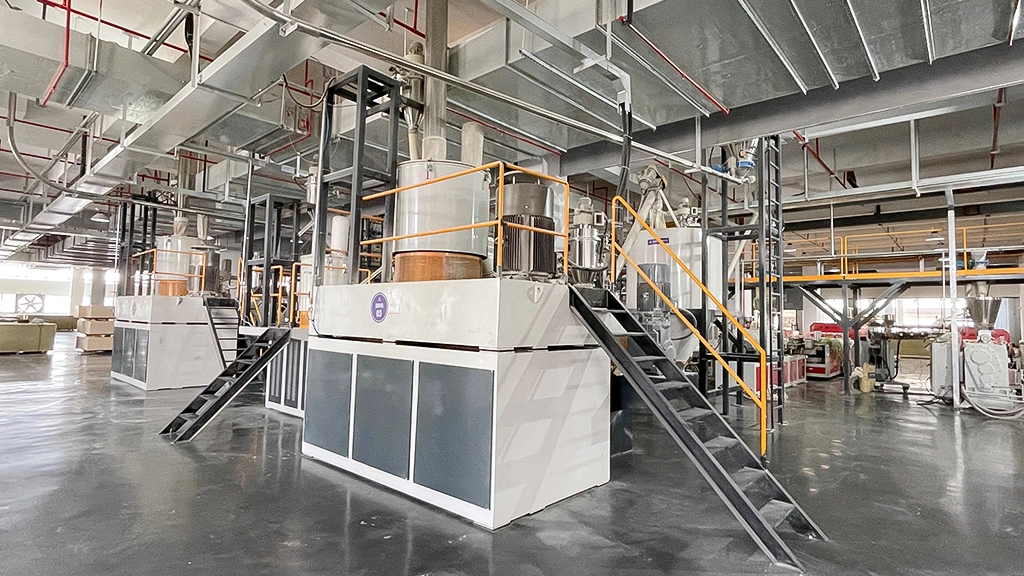

• High-Speed PVC Mixer: The heating-cooling mixer that provided consistent, high-speed blending of PVC resin and additives. This ensured that each batch was uniformly mixed, eliminating the quality issues that plagued their earlier process.
• Automated Minor Ingredients Batching System: Our **Automated Minor Ingredients Batching System** precisely measured out stabilizers, UV blockers, and other minor additives, guaranteeing accurate formulations every time. This level of precision was key to improving the performance and durability of their PVC wall panels.

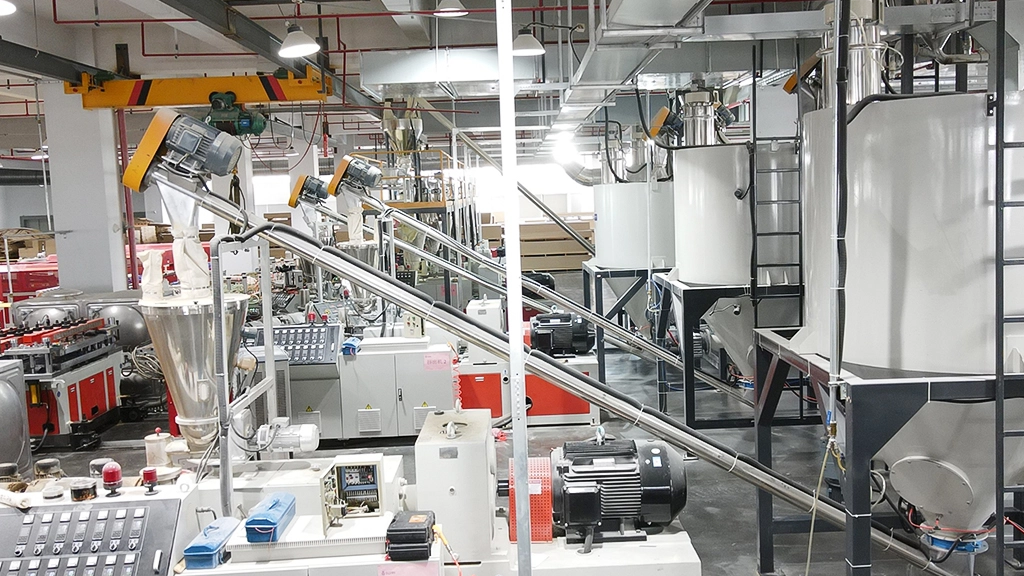

• Efficient Material Conveying: We incorporated **pneumatic conveyors** and **bulk bag unloaders** for the smooth, dust-free transfer of PVC powders. This significantly reduced manual labor while speeding up the movement of raw materials from storage to the mixing process.

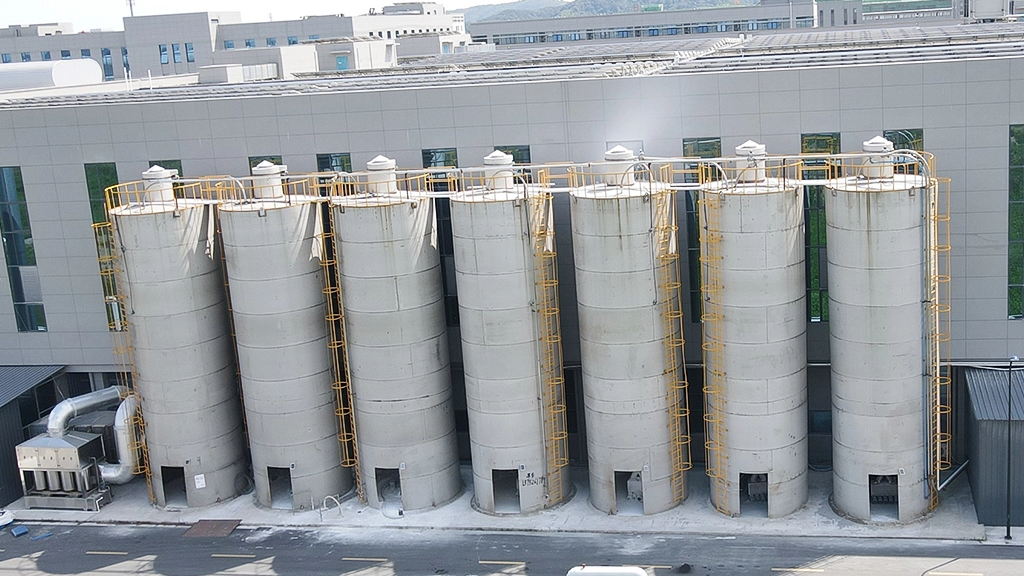

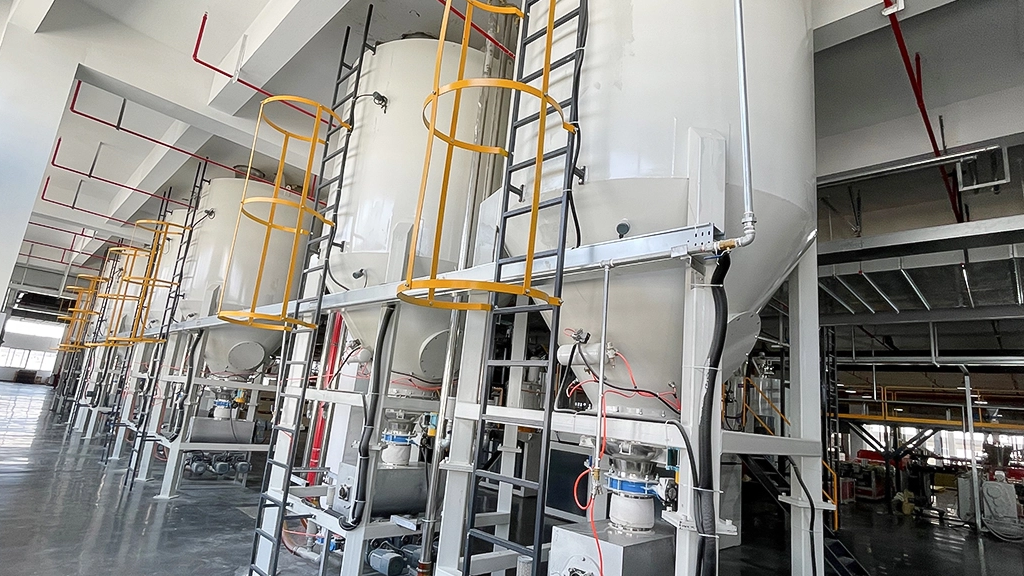

• Finished Material Storage Silos:** The introduction of **finished material storage silos** allowed the client to store mixed compounds efficiently, ready to be used for panel extrusion without delays, enhancing the overall production workflow.

Results:
The results were nothing short of transformative:

• Production Capacity Increased by 30%: With the new automated system, the client increased their daily production from 1000 to a remarkable 1300 tons of PVC wall panels. This not only met the rising demand but also allowed them to take on new customers and larger projects.
• Reduced Waste and Higher Quality: Consistent mixing and precise ingredient batching led to higher-quality panels, with a smoother finish and greater durability. The client saw a 15% reduction in material waste and a 17% decrease in rejected panels due to quality issues.
• Operational Cost Savings: Automating manual processes like ingredient weighing, mixing, and conveying reduced labor costs by 20%. Additionally, faster cycle times and minimized downtime translated into overall higher profitability.
• Faster Turnaround Time: The enhanced speed and efficiency of the automated system allowed the client to reduce the lead time for custom orders by 23%. This provided a significant competitive edge in a fast-moving market.

A Fun Fact:
After automating their production, the client introduced a new line of PVC wall panels that mimicked the look of natural stone and wood, complete with intricate patterns and textured finishes. Thanks to the system’s precision, they could replicate these designs perfectly across thousands of panels, something that was impossible with their previous setup. This new line became an instant hit, opening doors to high-end markets and luxury interiors, and even sparking collaborations with renowned interior designers!

Conclusion:
For this PVC wall panel manufacturer, automation was a game-changer. The **Automated PVC Mixing, Weighing, and Conveying System** streamlined their operations, allowing them to scale up production, improve product consistency, and reduce operational costs. By embracing automation, they were not only able to meet market demands but also innovate with new product lines, securing their position as a leader in the PVC wall panel industry.
